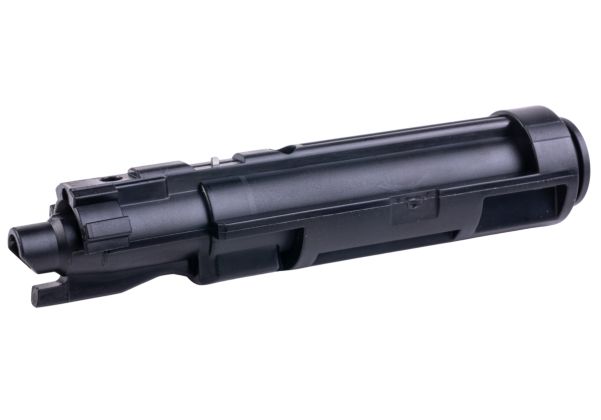

Guns Modify EVO Adjustable Nozzle Case V1.0 for Tokyo Marui MWS & GM M4/ SCAR-L MK2 GBB

The EVO Adjustment Nozzle from Guns Modify is a significant upgrade for most GM and Marui spec. MWS rifles. This nozzle is designed to conveniently adjust the power output of the MWS, catering to both field and user requirements, thereby eliminating the need for an NPAS rocket valve. By replacing the stock nozzle of GM/Marui MWS spec. nozzles, users can fine-tune the power output for both indoor and outdoor fields, ensuring a consistent performance that does not fluctuate, unlike traditional NPAS rocket valves.

In contrast to conventional nozzles, the GM adjustable nozzle features subtle design modifications, seamlessly integrating a power adjustment system located just above the nozzle head while maintaining compatibility with existing MWS spec. bolts. This system allows users to adjust the grub screw to achieve their desired power output, controlling the gas release with a screw lock that both indicates the current setting and secures the grub screw, ensuring consistent performance during extended use. For detailed operation instructions, please refer to the Operational Guide below.

This package requires the transfer of all nozzle assembly components into the adjustable nozzle housing. It includes both a high-flow and a standard-flow rocket valve, enabling further fine-tuning of the MWS system's power output.

The GM Adjustment Nozzle is an excellent enhancement for any GM/Marui spec. MWS rifles, allowing users to effortlessly adjust their system's power output on the fly, without the need to disassemble the nozzle assembly, as is necessary with some NPAS rocket valves. This upgrade significantly benefits players looking to optimise their MWS system's power output for various field conditions.

Operational Guide (Important Read):

• Take out the bolt.
• Pull out the nozzle to expose the screw lock, you don?t have to disassemble the nozzle assembly.

1. Slightly pull back and hold onto the Screw Lock, allowing for the Adjustment Screw to rotate.
2. Using an M1.5 hex key, turn the adjust screw to Close (Increase Output) or Open (Decrease Output) the decompression hole.
3. Adjust the screw accordingly to the desired power output.
4. Release the screw lock, and rotate the screw a little bit to ensure the screw lock interfaces with the adjustment screw.

Check out more Internal Parts!

Compatibility:

• M1.5 Hex Key
• Guns Modify spec. MWS GBB Rifles
• Guns Modify spec. MWS A5 GBB Rifles
• Cybergun / Guns Modify SCAR-L Mk. 2 GBB Rifle
• Tokyo Marui spec. MWS GBB Rifles or Similar
• Incompatible with Double Eagle / Salvo Precision spec. MWS GBB Bolts (May require some modifications)

Included:

• x1 Guns Modify EVO Adjustable Nozzle Case V1.0 for Guns Modify / Tokyo Marui MWS & GM A5 / SCAR-L MK2 GBB
• x1 Guns Modify Standard Flow Rocket Valve
• x1 Guns Modify High Flow Rocket Valve
