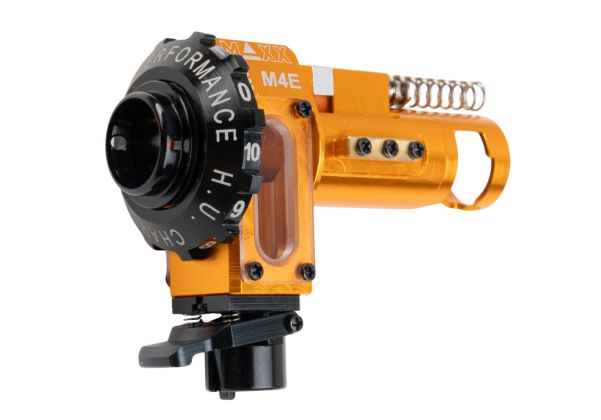

MAXX M4 AEG Hop Up Chamber M4E for M4 / M16 AEG (Except KWA) (CNC Aluminum)

The Hop-Up Chamber M4E unit by MAXX Model is engineered to eliminate jamming and double feeding while ensuring that BBs line up straight and consistent 95% of the time. The design features o-rings instead of screws for the hop-up arm, securely holding the pivot pin. Its internal structure has been updated for tighter tolerances, enhancing overall consistency and accuracy.

Crafted from CNC aluminum, the M4E Hop-Up Chamber (with BB Latching System) is precisely machined for reliable performance with Tokyo Marui-standard M4/M16 AEG series rifles, including G&G and KRYTAC models (excluding KWA).

This unit includes an aluminum rotary dial knob for fine hop-up adjustments, a precision hop-up lever, and 4mm bucking nubs optimized for R-Hop and standard-hop setups, ensuring accurate and consistent BB shooting.

The Hop-Up Chamber M4E accommodates nozzle lengths from 21.00mm to 21.25mm and is compatible with most aftermarket soft and hard rubber buckings, maintaining FPS without dropping BBs.

It features an interchangeable Inlet Adaptor (OD 11mm) to ensure precise alignment in the 11mm inner bore of AEG gearboxes or HPA engine nozzle outlets, eliminating wobble. Removable CNC brass side wings allow for smooth installation into outer barrel slots, while an advanced CNC Delrin locking C-clip secures the inner barrel tightly to prevent wobbling and twisting.

Additionally, the M4E unit includes a new BB Latching System that prevents BBs from falling out when the magazine is removed. The Latching Arm can be manually pressed to release any remaining BBs from the hop-up chamber.

Check out more Airsoft Parts

Compatibility:

• V2 Gear Boxes with 11mm or 11.5mm Bore
• Fully Compatible with Most Aftermarket Hop-up Buckings

Includes:

• 1 x CNC Aluminum Hopup Chamber M4E Pro (with BB Latching System) unit
• 2 x CNC Acrylic Side Cover
• 2 x CNC Brass 2.5mm Side Wing
• 1 x CNC Steel Pivot Pin
• 1 x CNC Aluminum Hopup Lever
• 1 x CNC Aluminum Soft Round Nub
• 1 x CNC Aluminum Soft Flat Nub (4mm)
• 1 x CNC Aluminum Hard Concave Nub (4mm)
• 3 x Steel Nub Spring
• 1 x CNC Steel Spring Guide
• 1 x Steel Upper Compression Spring
• 1 x Steel Center Compression Spring
• 1 x CNC Delrin Locking C-Clip
• 1 x CNC Brass Barrel Spacer
• 1 x Brass Barrel Spacer Holder O-ring
• 1 x CNC Aluminum Rotary Dial Knob
• 1 x CNC Aluminum Inlet Adaptor (OD11mm)
• 1 x CNC Brass Inlet Spacer
