ARES / Amoeba Electronic Gearbox Programmer for ARES Electronic Firing Control System Gearbox

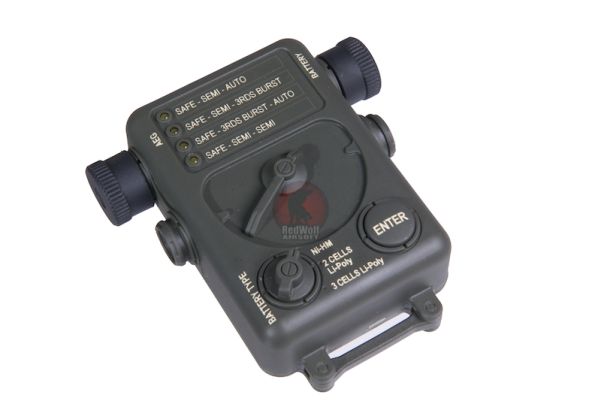

The Electric Programmer is very easy to use and it's meant for only the ARES M4A1 Carbine (Electric Fire Control System Version). There are two black knobs at the top. While facing the front the left side plugs into the M4A1 and the right side plugs into the battery you use for it. The programmer only uses Ni-MH and LiPo batteries with 2-3 Cells.

Once everything is plugged in, set the battery type according to the battery you're using. In the middle there is a switch that can select 4 different ways your AEG will fire:

SAFE - SEMI - AUTO

SAFE - SEMI - 3RDS BURST

SAFE - 3RDS BURST - AUTO

SAFE - SEMI - SEMI

When you do flick the switch, the light will indicate which one you've selected. Choose which one you want and press the ENTER button. It'll flash a few times then will sound a loud beep to show you it's ready. Unplug the AEG and battery and have fun with your new settings!
